Why are bearings with a contact angle (e.g. TRBs, ACBBs, ...) axially loaded although a pure radial load is applied on the arrangement ?

Tools: SKF SimPro Expert, SKF SimPro Quick

Versions: 4.7

License: Basic

Visible to: Everyone

Description:

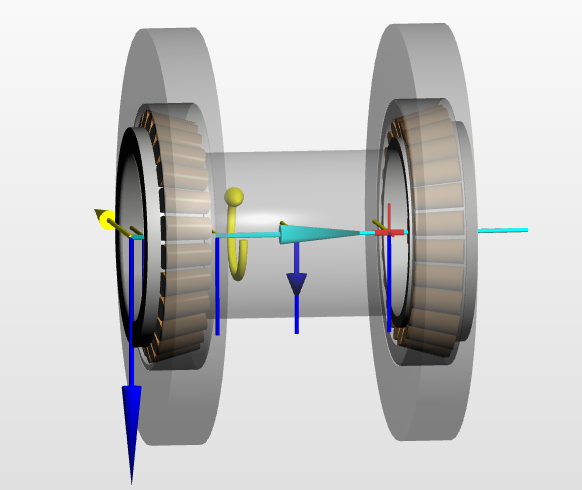

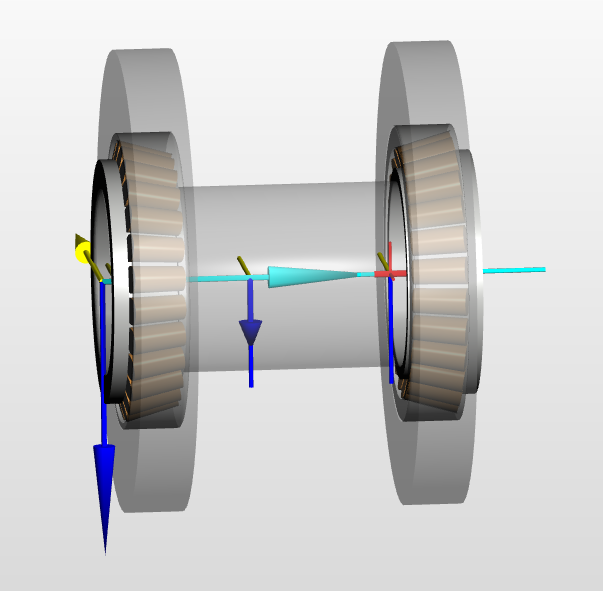

In the attached models an external radial load is applied on a shaft with a TRB arrangement (2 TRBs in back-to-back arrangement).

The models will demonstrate and explain the effect on the resulting bearing loads, when bearings with a contact angle (TRBs, ACBBs, ...) are radially loaded.

A detailed explanation can be found in the report of the corresponding model.

• Option 1: no external load
• Option 2: external radial load
• Option 3: external radial load + positive external axial load
• Option 4: external radial load + negative external axial load

SimPro Expert models:

• TRBset - induced loads - external force in centre.spe
• TRBset - induced loads - external force not in centre.spe

SimPro Quick models:

• TRBset - induced loads - external force in centre.spq
• TRBset - induced loads - external force not in centre.spq
